Parent Layer: Adopted 2045 RMAP Volumes

Name: RMAP Volumes 2045

Display Field: ST_NAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>RMAP Volumes for 2045.</SPAN></P><P><SPAN>Last updated - January 10, 2023</SPAN></P><P><SPAN /></P></DIV></DIV></DIV>

Service Item Id: ae75ac7fc57c4dc4b8458a988e1f9da3

Copyright Text: PAG 1 E. Broadway Blvd., Suite 401 Tucson, AZ 85701 p: (520) 792-1093 f: (520) 620-6981

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -111.56018600028364
YMin: 31.48657799987484
XMax: -110.43344100030191
YMax: 32.63761799967102
Spatial Reference: 4019  (4019)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [65, 153, 134, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• ID ( type: esriFieldTypeInteger, alias: ID )
• DIR ( type: esriFieldTypeSmallInteger, alias: DIR )
• LENGTH ( type: esriFieldTypeDouble, alias: LENGTH )
• ATYPE ( type: esriFieldTypeInteger, alias: ATYPE )
• ST_NAME ( type: esriFieldTypeString, alias: ST_NAME, length: 40 )
• AB_LANES ( type: esriFieldTypeInteger, alias: AB_LANES )
• AB_LINKCLA ( type: esriFieldTypeInteger, alias: AB_LINKCLA )
• BA_LANES ( type: esriFieldTypeInteger, alias: BA_LANES )
• BA_LINKCLA ( type: esriFieldTypeInteger, alias: BA_LINKCLA )
• AB_DAILY ( type: esriFieldTypeInteger, alias: AB_DAILY )
• BA_DAILY ( type: esriFieldTypeInteger, alias: BA_DAILY )
• AB_AM ( type: esriFieldTypeInteger, alias: AB_AM )
• BA_AM ( type: esriFieldTypeInteger, alias: BA_AM )
• AB_MID ( type: esriFieldTypeInteger, alias: AB_MID )
• BA_MID ( type: esriFieldTypeInteger, alias: BA_MID )
• AB_PM ( type: esriFieldTypeInteger, alias: AB_PM )
• BA_PM ( type: esriFieldTypeInteger, alias: BA_PM )
• AB_NGT ( type: esriFieldTypeInteger, alias: AB_NGT )
• BA_NGT ( type: esriFieldTypeInteger, alias: BA_NGT )
• DY_FLOW ( type: esriFieldTypeInteger, alias: DY_FLOW )
• AM_FLOW ( type: esriFieldTypeInteger, alias: AM_FLOW )
• MD_FLOW ( type: esriFieldTypeInteger, alias: MD_FLOW )
• PM_FLOW ( type: esriFieldTypeInteger, alias: PM_FLOW )
• NT_FLOW ( type: esriFieldTypeInteger, alias: NT_FLOW )
• Shape_Length ( type: esriFieldTypeDouble, alias: Shape_Length )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

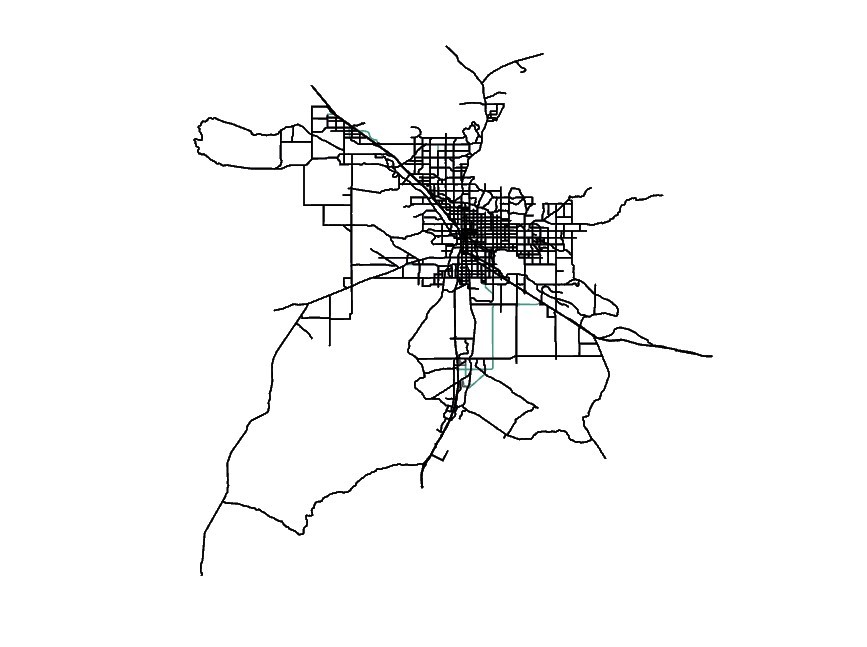

  Iteminfo   Thumbnail   Metadata
