Name: stnetall_pc_Dissolve

Display Field: STR_NAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

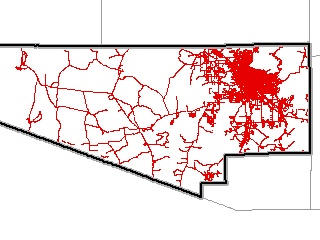

Description: stnetall displays all the streets in Pima County in a single-line representation. Known Errors/Qualifications: Urban streets from 12000 scale & rural streets from 100000 scale; 1/3 streets rectified to parcel base. 10/2013: While this layer is not maintained in coverage format, the coverage format is still required for certain nightly processing. See Steve Whitney. Spatial Domain: Pima County Rectified: parcel Maintenance Organization: PC ITD GIS Maintenance Description: The annotation is stored in the snetanno cover and should be updated there. Maintenance Frequency: Daily Maintenance Format: GDB Spec Export Primary Source Organization: PC DOT & DSD Primary Source Document: Orthophotos,Abandonments,Subdivisions,Parcel Split Primary Source Date: 1999 Primary Source Format: Shape Secondary Source Organization: USGS Secondary Source Document: Transportation DLG Secondary Source Date: 1988 Secondary Source Scale: 100000 GIS Contact: Ray Brice MapGuide Layer Name: Streets - All MapGuide Scale Range: 0 - 50000

Service Item Id: 4ede1fbd3fdd4ed6a2f0a09ecd968bc5

Copyright Text: Pima County Information Technology Department - Geographic Information Systems 33 N Stone Ave., 15th Floor Tucson, AZ 85701

Default Visibility: true

MaxRecordCount: 70000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 388465.10662729666
YMin: 175848.06266403943
XMax: 1154545.004593175
YMax: 553584.2158792615
Spatial Reference: 2868  (2868)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: ROADCAT_DS
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: Interstate highway
  Label: Interstate highway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [5, 5, 5, 255]
  Width: 3
• Value: State route
  Label: State route
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [78, 78, 78, 255]
  Width: 3
• Value: State route ramp
  Label: State route ramp
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [92, 87, 97, 255]
  Width: 1
• Value: Major local road
  Label: Major local road
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [104, 104, 104, 255]
  Width: 2
• Value: Major road ramp
  Label: Major road ramp
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [78, 78, 78, 255]
  Width: 2
• Value: Interstate ramp
  Label: Interstate ramp
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [111, 107, 115, 255]
  Width: 1
• Value: Frontage road
  Label: Frontage road
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [75, 73, 77, 255]
  Width: 1
• Value: Indian route
  Label: Indian route
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [204, 204, 204, 255]
  Width: 1
• Value: Minor local road
  Label: Minor local road
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [216, 211, 222, 255]
  Width: 1
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• ROADCAT_CD ( type: esriFieldTypeString, alias: ROADCAT_CD, length: 10 )
• PRE_DIR ( type: esriFieldTypeString, alias: PRE_DIR, length: 2 )
• STR_NAME ( type: esriFieldTypeString, alias: STR_NAME, length: 40 )
• STR_TYPE ( type: esriFieldTypeString, alias: STR_TYPE, length: 2 )
• SUF_DIR ( type: esriFieldTypeString, alias: SUF_DIR, length: 2 )
• STREET ( type: esriFieldTypeString, alias: STREET, length: 50 )
• STNAMETYPE ( type: esriFieldTypeString, alias: STNAMETYPE, length: 40 )
• ROADCAT_DS ( type: esriFieldTypeString, alias: ROADCAT_DS, length: 40 )
• MIN_ADD_MIN ( type: esriFieldTypeInteger, alias: MIN_ADD_MIN )
• MAX_ADD_MAX ( type: esriFieldTypeInteger, alias: MAX_ADD_MAX )
• Shape_Length ( type: esriFieldTypeDouble, alias: Shape_Length )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
